SpringBoot+Kafka+ELK 完成海量日志收集

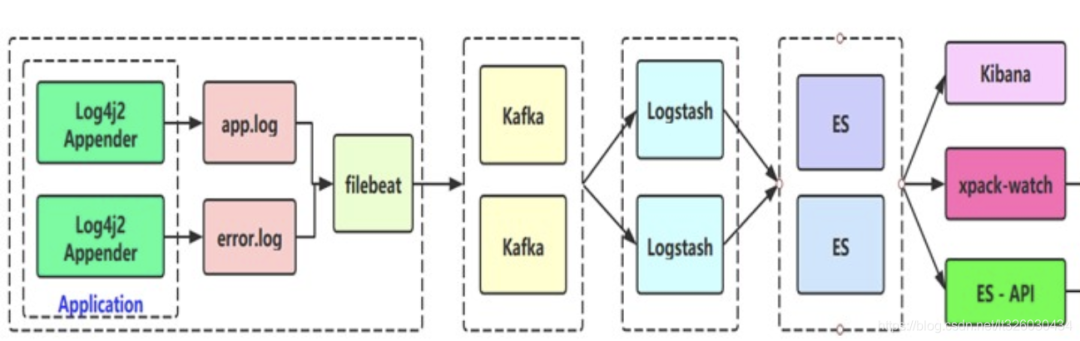

整体流程大概如下：

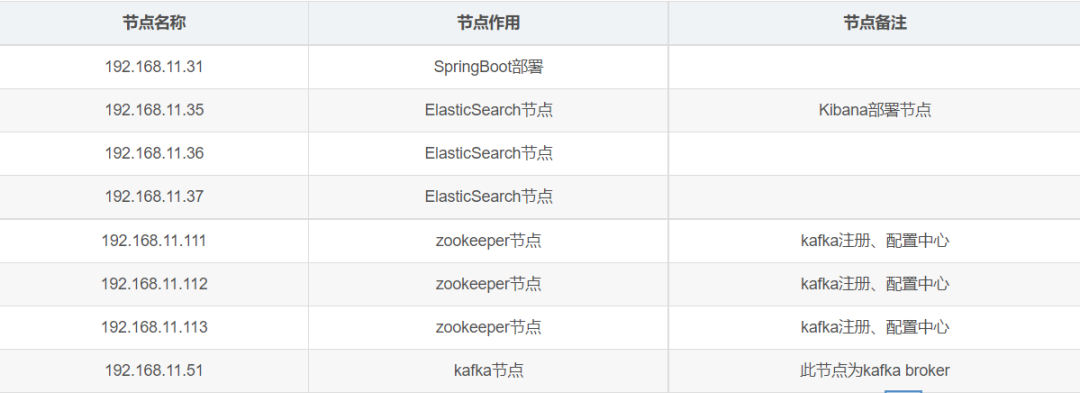

服务器准备

在这先列出各服务器节点，方便同学们在下文中对照节点查看相应内容

SpringBoot项目准备

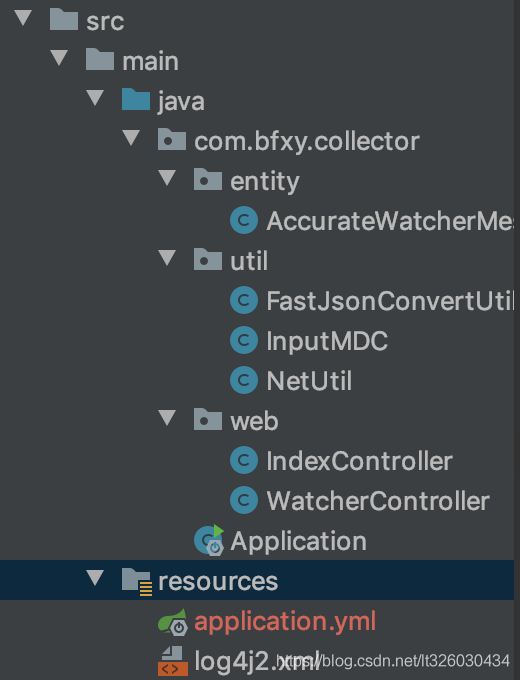

引入log4j2替换SpringBoot默认log，demo项目结构如下：

pom

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
        <!--  排除spring-boot-starter-logging -->
        <exclusions>
            <exclusion>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-logging</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
 <!-- log4j2 -->
 <dependency>
     <groupId>org.springframework.boot</groupId>
     <artifactId>spring-boot-starter-log4j2</artifactId>
 </dependency>
   <dependency>
     <groupId>com.lmax</groupId>
     <artifactId>disruptor</artifactId>
     <version>3.3.4</version>
   </dependency>
</dependencies>

log4j2.xml

<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="INFO" schema="Log4J-V2.0.xsd" monitorInterval="600" >
    <Properties>
        <Property name="LOG_HOME">logs</Property>
        <property name="FILE_NAME">collector</property>
        <property name="patternLayout">[%d{yyyy-MM-dd'T'HH:mm:ss.SSSZZ}] [%level{length=5}] [%thread-%tid] [%logger] [%X{hostName}] [%X{ip}] [%X{applicationName}] [%F,%L,%C,%M] [%m] ## '%ex'%n</property>
    </Properties>
    <Appenders>
        <Console name="CONSOLE" target="SYSTEM_OUT">
            <PatternLayout pattern="${patternLayout}"/>
        </Console>
        <RollingRandomAccessFile name="appAppender" fileName="${LOG_HOME}/app-${FILE_NAME}.log" filePattern="${LOG_HOME}/app-${FILE_NAME}-%d{yyyy-MM-dd}-%i.log" >
          <PatternLayout pattern="${patternLayout}" />
          <Policies>
              <TimeBasedTriggeringPolicy interval="1"/>
              <SizeBasedTriggeringPolicy size="500MB"/>
          </Policies>
          <DefaultRolloverStrategy max="20"/>
        </RollingRandomAccessFile>
        <RollingRandomAccessFile name="errorAppender" fileName="${LOG_HOME}/error-${FILE_NAME}.log" filePattern="${LOG_HOME}/error-${FILE_NAME}-%d{yyyy-MM-dd}-%i.log" >
          <PatternLayout pattern="${patternLayout}" />
          <Filters>
              <ThresholdFilter level="warn" onMatch="ACCEPT" onMismatch="DENY"/>
          </Filters>
          <Policies>
              <TimeBasedTriggeringPolicy interval="1"/>
              <SizeBasedTriggeringPolicy size="500MB"/>
          </Policies>
          <DefaultRolloverStrategy max="20"/>
        </RollingRandomAccessFile>
    </Appenders>
    <Loggers>
        <!-- 业务相关 异步logger -->
        <AsyncLogger name="com.bfxy.*" level="info" includeLocation="true">
          <AppenderRef ref="appAppender"/>
        </AsyncLogger>
        <AsyncLogger name="com.bfxy.*" level="info" includeLocation="true">
          <AppenderRef ref="errorAppender"/>
        </Asyn
